Custom Point Form Die, type -H
Custom Point Form Die, type -H Quantity in Basket: None
Catalog No.: PF-1-HC
Price: $814.00
Shipping Weight: 1.50 pounds
Enter desired bullet diameter in inches:
Select base shape (if applicable):
Not applicable
Flat base
Dish base (shallow concave)
Cup base (paper patch)
Hollow base (typically for pellet, Minie-ball, airgun slug)
Rebated Boatail
Base Guard
Heel Base (enter specs) +$84
Custom Base (enter specs) +$84
Enter custom base specs:
Enter desired weight range in grains:
Select wire diameter:
Use standard size for caliber
Other, custom made ($175 or $35/ea)
Enter custom size if checked:
  Honed-fit, sync-length ejector (jacketed lead tip):
  Weight-adjusting bleed holes (lead bullets):
  Large OD die (higher pressures):
Optional Note:
Select Ogive (nose) Shape:
Truncated Cone (TC)
1/2-E Blunt RN
3/4-E Pistol RN
1-E Rifle RN
1-E standard flat tip (50% of caliber)
Luger 9mm shape
2-S Short Spitzer
4-S Short Spitzer
6-S Standard Rifle
8-S Spitzer
10-S Spitzer
12-S spitzer
Ultra Low Drag Secant
Custom Shape (+ $240)
Enter custom ogive specs:

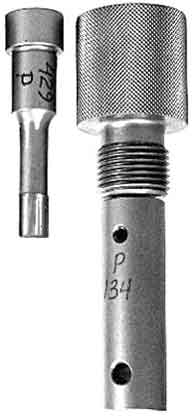

PF-1-HC custom point forming die is any point former for the -H presses that uses a non-standard diameter or ogive shape. In addition, it can have bleed holes for adjusting the weight of lead bullets (which also requires a hone-fitted, length-synchronized ejector to seal the pressure in the die), a pressure-sealing ejector punch to make lead tip bullets without a LT die and extra step, a special extra-large die body for higher pressures, or a custom external punch shape. Please note:
You do not need to provide values for ALL of the options. If left blank, the most popular and useful value will be used. The options are offered in case you have a specific value in mind for your own reason. Feel comfortable in leaving blank any value about which you ae unsure or do not have a specific requirement.

You do not need to get both the bleed hole option and the pressure-sealing hone-fit sync punch option because the bleed hole option includes the punch in the pricing. (If you accidently order both options, we will not charge extra for the punch option even though the order may indicate otherwise).

You can have both a custom ogive and a custom diameter, or either one alone, for the same price, because either will require making the same amount of tooling. If you wish to specify a diameter or shape other than whatever the standard size normally supplied for the caliber would be, it becomes a custom size or shape. That is, standard shapes for most rifle calibers include the 1-E round nose and the 6-S spitzer. Most modern calibers also include the ULD shape as a standard, and some use 8-S and 10-S ogives often enough so that we stock the tooling. But if you want a 6.5-S or specify a radius that isn't normally stocked, it is custom. Likewise, if you want to specify a .3086 bullet diameter and our standard is .3080-.3082 for the .30 caliber, that would be a custom job.
Spitzer ogives Eliptical ogives

Related Item(s)
Code Name Price Availability
PF-1-H Point Forming Die, type -H $386.00
