RF Case Jacketmaker, 243, type -H
RF Case Jacketmaker, 243, type -H Quantity in Basket: None
Catalog No.: RFJM-6MH
Price: $347.00
Shipping Weight: 2.00 pounds
This die set turns fired .22 LR cases into preforms for 6mm (243) jackets. The final size takes place when the lead core is seated and expands the jacket. The head of the case is drawn straight, and the mouth of the jacket is flared. Only the head section is reduced to about 0.219 inches. The reset of the case is left full diameter, except for the expanded mouth.

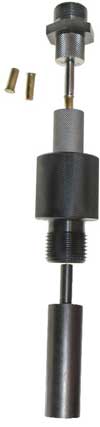

Expanding the mouth allows the jacket to seal the pressure during core seating, so that the lead core will expand the entire jacket to .2425 in preparation for making a full diameter .243 bullet in the point form die. This set consists of a RFJM-6MS (die and punch set for the -S press) plus an adapter kit for the ram of the -H type Corbin presses and the -H type punch holder. This kit is usable on both the 224 and the 243 jacket makers, so if you have one die set for the Hydro-Press, Mega-Mite Press, or the Hydro Junior, you can simply purchase the type -S die set for the other caliber, and use the same adapter.

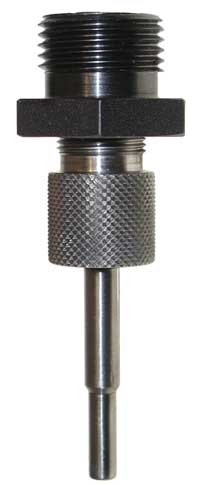

6mm top punch in the -H adapter Threaded adapter bushing for the FPH-1-H punch holder

Related Item(s)
Code Name Price Availability
FPH-1-H Floating Punch Holder, -H $149.00
RFJM-22S RF Jacket Maker, -S, 224 $239.00
RFJM-6MS RF Jacket Maker, -S, 243 $239.00
RFJM-22H RF Jacket Maker, -H, 224 $347.00
