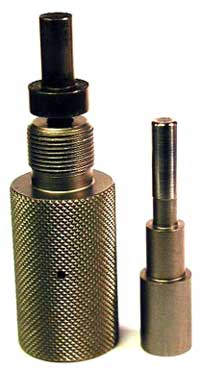

Core Swage Die, type -S
Core Swage Die, type -S Quantity in Basket: None
Catalog No.: CSW-1-S
Price: $239.00
Shipping Weight: 0.50 pounds
Enter desired core size, in inches:
Enter desired weight range in grains:
CSW-1-S core swage die is used to adjust the weight of a cast or cut core, and bring the diameter up to a close fit for the particular jacket ID to be used. Core swage dies have bleed holes in the side of the die to extrude surplus lead. Adjustment of weight to less than 1/2 of 1% of total core weight is practical.

If you know the diameter of core you wish to produce, enter it above. If you know the jacket wall thickness, subtract 2 times the jacket wall thickness from the caliber and enter .001 to .002 inches less than this as your core diameter. If you do not know either of these, enter the bullet caliber and write "cal, jacketed" or "cal, lead" so we know approximately how big a core you need.

Most tubing jackets have .035 wall thickness, so the core will be .070 less than the caliber, less another .002 for clearance. Example, if you want to make a .458 bullet with tubing jackets, the core would need to be .458 - .072 = .386 or smaller in order to fit inside the jacket. But if you want to make a lead .458 bullet, the core could be .456 and still fit easily into the point forming die.

EXPORT RESTRICTIONS: We can ONLY ship to USA locations, Canada, or the UK at this time!
Note: 3.5% Bank Card Processing Fee added by Card Processing Service. VCC Number is required for security: send by email with order number.
