Press Mounting Plate

Press Mounting Plate Quantity in Basket: None
Catalog No.: CSP-MTG
Price: $150.00
Shipping Weight: 10.00 pounds

Optional Note:

Quantity:

This is a 6 x 6 x 2-inch thick steel mounting plate for either the CSP-1 or the CSP-2 Corbin press. It has a 3-bolt hole pattern of threaded mounting holes which go through the plate, one set of threaded holes for each of the two models of Corbin press (six total threaded holes). The inside pattern uses 5/16 x 18 tpi bolts. The outside pattern uses 1/2 x 13 tpi bolts.

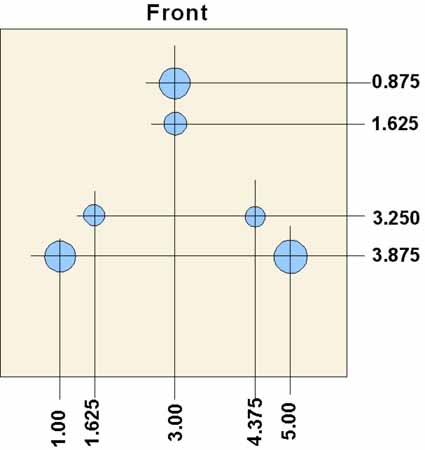

Mounting Plate Pattern This is the plate normally welded on top of a square steel tube, which telescopes within a larger diameter square tube on the Corbin CSP-S floor stand. It is offered as a "Do It Yourself" project component for those who wish to build their own stands or to use the heavy mounting plate as reinforcement for a bench top for mounting one of the two presses, or as a removable clamp-on mounting base.

Please note that although the picture shows the plate sitting on its stand post to illustrate normal use, this item does not include any post or other mounting components. If you order this item, you will receive the 6 x 6 x 2 inch steel plate by itself.



Related Item(s)
Code Name Price Availability
CSP-1 S-Press $949.00
CSP-2 Mega-Mite Press $1,949.00



EXPORT RESTRICTIONS: We can ONLY ship to USA locations, Canada, or the UK at this time!
Note: 3.5% Bank Card Processing Fee added by Card Processing Service. VCC Number is required for security: send by email with order number.
