50 BMG Priming Tool

50 BMG Priming Tool Quantity in Basket: None
Catalog No.: PT-50-H
Price: $198.50
Shipping Weight: 2.00 pounds


Quantity:

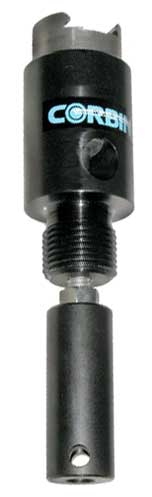

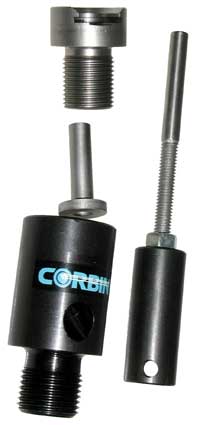

PT-50-H priming tool works with Corbin CSP-2, CSP-2H, and CHP-1 presses. It deprimes on the up stroke, with the primer guide removed. Spent primers drop through a port in the side of the ram extension. The tool comes with a 50 BMG shell holder.Priming Tool, disassembled

To prime cases, simply unscrew the shell holder and insert the primer guide through the bottom to reduce the hole size in the shell holder. This hardened tool steel tube guides the primers precisely into the base of the cartridge case on the down stroke.

To adjust the depth of seating, set the length of the punch by adjusting the position of the punch head. It screws up and down on the end of the punch, and is secured by a lock nut.

To prime, raise the ram just slightly, to drop the punch and make room for a primer. Drop a primer into the hole in the shell holder (with the primer guide in place, the primer just fits). Slide in a cartridge case, and then lower the ram to push the primer into the cartridge case. Raise the ram slightly, again, and slide out the primed case. Inspect the primer depth, and make any adjustments to the punch head to set the depth.



Related Item(s)
Code Name Price Availability
CSP-2 Mega-Mite Press $1,398.00
CHP-1 Corbin Hydro-Press $8,950.00
SH-50 50 BMG Shell Holder $69.50
PT-50-HG Primer Guide, for 50BMG primer tool $18.50
