Lead Tip Die, Type -S

Lead Tip Die, Type -S Quantity in Basket: None
Catalog No.: LT-1-S
Price: $199.00
Shipping Weight: 1.00 pounds

Enter actual diameter in inches:
Select Nose Shape:
Truncated Cone (TC)
1/2-E Blunt RN
3/4-E Pistol RN
1-E Rifle RN
1-E standard flat tip (50% of caliber)
Luger 9mm shape
2-S Short Spitzer
4-S Short Spitzer
6-S Standard Rifle
8-S Spitzer
10-S Spitzer
12-S spitzer
Ultra Low Drag Secant
Custom Shape (+ $200)
Enter custom ogive specs:
Select base shape:
Flat base
Dish base (shallow concave)
Cup base (paper patch)
Hollow base (pellet, Minie, slug)
Rebated Boatail
Base Guard
Heel Base (enter specs) +$70
Custom Base (enter specs) +$70
Enter custom base specs:
  Hardened tip closer option ($75)

Quantity:

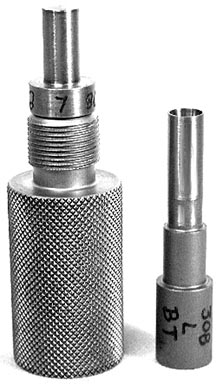

LT-1-S point forming die is used to finish the tip of an exposed lead jacketed bullet. It follows the use of a PF-1-S point forming die, and reshapes the exposed lead tip to the desired sharpness or radius.

Lead tip dies are made for a specific caliber, but the ogive shape (and tip shape) are controlled by the internal punch. You can add additional internal punches to use the same die for different ogives in one caliber. You do not have to purchase different dies for different nose shapes, only the internal punch.

The base punch should match the base of the bullet as formed in the previous steps. That is, for RBT base bullets use a RBT punch, and for flat, cupped, or hollow bases use the same shape punch. The punch from the point forming die will fit the lead tip die, although one comes with the lead tip die also.



EXPORT RESTRICTIONS: We can ONLY ship to USA locations, Canada, or the UK at this time!
