Adapt -S dies to Walnut Hill press
	Quantity in Basket: None Catalog No.: WH-KIT Price: $227.00 Shipping Weight: 0.50 pounds
	Enter ONE bullet caliber (diameter) in inches: Select wire diameter: Use standard size for caliber .047-in .062-in .072-in .081-in .091-in .105-in .120-in .134-in Other, custom made ($175 or $35/ea) Enter custom size if checked:
	Quantity:

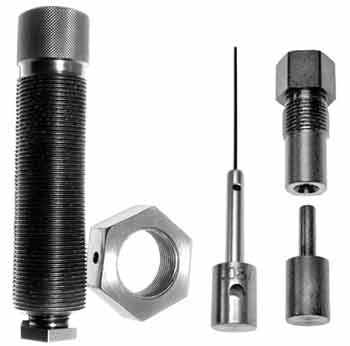

This is a complete set of adapters to use any Corbin -S type swage die and external punch in a Walnut Hill press, including these items: WH-ADAPT, a two-part adapter which allows the following dies to fit and operate in the WH press: CSW-1-S, CS-1-S. LSWC-1-S, RBT-2-S dies, and similar swage dies which do not require a captive ejection punch. WH-EJECT, a special ejection punch with your choice of ejection pin diameter to match a specific PF-1-S die or end rounding die from a cTJM-1-S set. You must specify the caliber and ejection pin wire size for a given PF-1-S die. These are marked on the end of each die. You need to add ejectors for different sizes of PF-1-S dies IF they use different ejection pin diameters. The other components are the same for all calibers. FPH-1-S, standard floating punch holder which holds and adjusts the position of any Corbin external swage punch for any die, in the head of the WH press. Please Note: It will not work to specify a range of different calibers for point forming dies which have different size ejection pins, without adding a separate WH-EJECT ejector for each size. The set comes with one diameter of ejector. If you have a .224 and a .308 and a .452 point forming die to use in the adapter, each one will have a different diameter of ejection pin. One WH-EJECT pin will not work in all of them, but you CAN order one WH-KIT for one of them, and then order additional WH-EJECT ejectors for the others, specifying the wire pin diameter for each one. Everything in the kit except for the ejector pin is usable with all -S point form dies in all calibers. Just the diameter of the ejector pin has to match your specific point forming die's ejection pin size. It is important to understand this so you won't expect to use the same ejection pins on every caliber of die.

Related Item(s)

Code	Name	Price	Availability

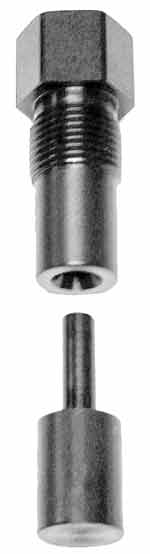

WH-ADAPT	Ram Adapter, Walnut Hill Press	$98.00
WH-EJECT	Conversion -S to -WH ejector punch	$85.00

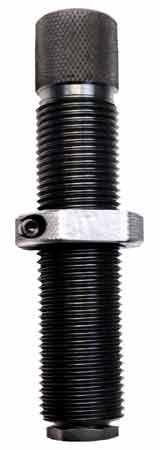

FPH-1-S	Floating Punch Holder, -S	$90.00
